R134a Refrigerant Handling Systems

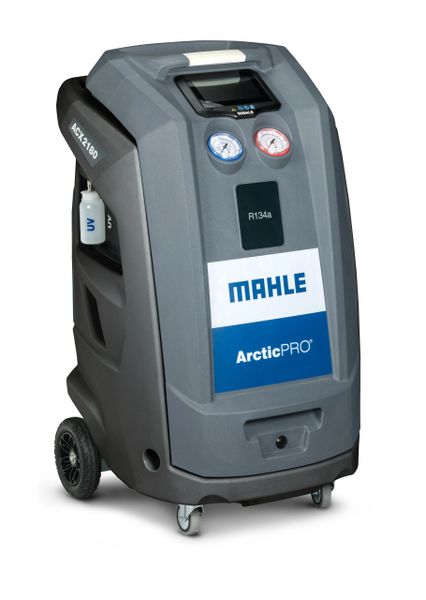

ArcticPRO ACX2180

Part Number: 460 80447 00

FEATURES

• State-of-the-Art. Ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
• Extra Transducers. Contains three transducers, providing reduced process times over dual sensor units.
• Status Indicator. LED light indicates status visible from anywhere in the workshop.
• Smart. iOS and Android capable phone app allowing remote service session mirroring and advanced functions.
• Best In Class Serviceability. New ergonomic hinged service door simplifies unit service.
• Automatic Updates. Permanent wireless software updates, ensuring you always have the latest features.
• Oil System Management. Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service and allows two oil types for injection.
• UV Dye Injection. Integrated UV dye injection provides high level of A/C system leak detection.
• Remote Support for Technicians. Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
• Data Management & Reporting Metrics. Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
• Customer Service. Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
• Network Printing. Retains valuable service records, network printing capability to print services provided for customer.

OPTIONAL FEATURES

• Thermal Printer. Allows printing of service reports.
• Refrigerant Identifier. Prevents contamination of machine internals.

Certifications SAE J2788, SAE J2099, UL 1963

Charge Performance +/-0.5 oz at 70 degrees to 75 degrees F (+/- 15g at 21° to 24°C)

Recovery Performance 95% at 70° to 75°F (21° to 24°C) within 30 minutes

Operation Fully Automatic

Charging Cylinder 30 lb. (13.6 kg) DOT

Compressor 3/8 HP-0.279kW

Dimensions (H x W x D) 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)

Weight 215 lb. (98 kg)

Display Color, 7” Capacitive Touch Screen

Filter Drier Capacity 150 Lb. (68 kg) spin-on type

Hoses 9 ft. (2.75 m)

Hybrid Function ACX2180H only

Languages English, French, Spanish

Operating Ranges 50° to 122°F (10° to 50°C)
